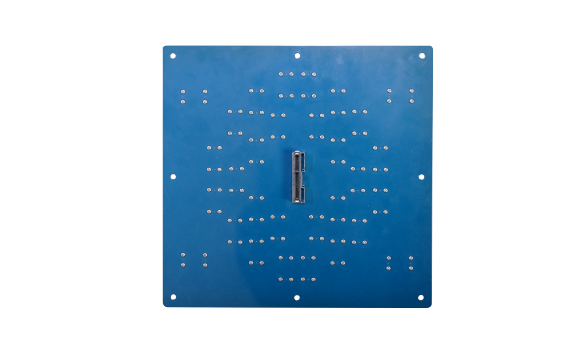

Part Details
Product Specification
ITEM | Description |
Connector | Gen-Z 2C connector as defined in SFF-TA-1002 |
Connector Contact | 84-pin connector |
Connector Configuration | Vertical |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 13 TX and 13 RX |
RF Co-axial Launch Connector | 2.40mm connector(50 Ohm) |
HSIO Routing | 85 Ohm ±5% differential-ended stripline |
Board Stack-Up | 6 layers (1.60mm thickness) |
De-embedding structure | 2X THRU line |
Reference plane for 2X THRU De-embedding structure | 40mils from voiding under SMT pads |
Power source to DUT | N/A |
