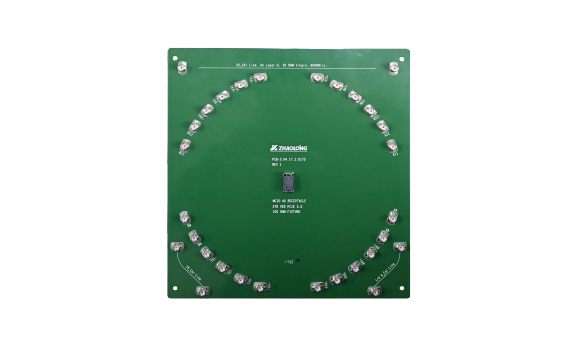

Part Details
Product Specification
ITEM | Description |
Connector | MCIO connector as defined in SFF-TA-1016 |
Connector Contact | 38-pin connector |
Connector Configuration | Vertical |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 6 TX and 6 RX |
RF Co-axial Launch Connector | 1.85mm connector(50 Ohm) |
HSIO Routing | 50 Ohm ±5% Single-Ended stripline |
Board Stack-Up | 4 layers (1.48mm thickness) |
De-embedding structure | 2X THRU line |
Reference plane for 2X THRU De-embedding structure | 40mils from voiding under SMT pads |
Power source to DUT | N/A |
