Part Details
General Characteristic
Category Category | High-Speed I/O Connectors |
Series | 02 Series |

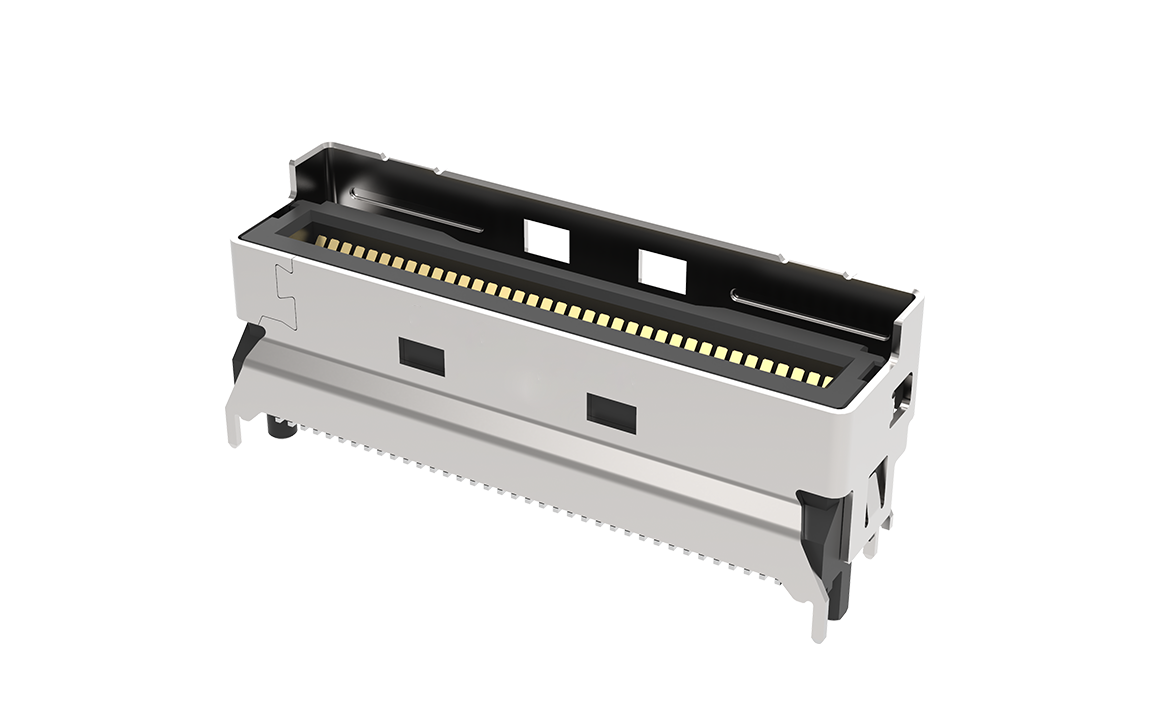

Description | MCIO 8X Vertical Connector, 8x 74 Pos 13 HS Channels Max.4.20mm Shell Leg Length, PCIe Gen 5, with Pick and Place Cap |
Application | Wire-to-Board |
Component Type | Receptacle |
Product Family | MCIO Connector System |
Product Name | MCIO |
Type | Internal |
Electrical Characteristic
Current Rating | 1.1A per pin |
Data Rate | 32 Gbps |
Max. Voltage | 30V |
Dielectric Withstanding Voltage | 300 VDC minimum for 100 ms |
Insulation Resistance | 10 MΩ minimum between adjacent pins |
Physical Characteristic
Circuits (Loaded) 74 Circuits (maximum) 74 Color-Resin Black Durability (mating cycles max) 200 Gender Receptacle Lock to Mating Part Yes Material - Metal Copper Alloy Material - Plating Mating Gold Material - Plating Termination Gold Material - Resin High Temperature Plastic Number of Pairs 13 Number of Rows 2 Orientation Vertical Shell Leg Length 4.20mm Packaging Type Embossed Tape on Reel Panel Mount No PCB Locator Yes PCB Retention Yes Pitch - Mating Interface 0.60mm Pitch - Termination Interface 0.60mm Plating min - Mating Au 30u” Plating min - Termination Gold Flash Polarized to Mating Part Yes Polarized to PCB Yes Pitch 0.6mm Termination Interface Style Surface Mount Ports 1 Temperature Range - Operating -40° to +85°C
Environment Characteristic
RoHS Compliance | RHS 2.0 Compliance |
China RoHS Compliane | Yes |
REACH SVHC | Yes |
Halogen Free(HF) Compliance | Yes |
Solder Process Characteristic
Solder Process Type | IR Reflow |
Max. Process Temperature | 260℃ |
Duration at Max. Process Temperature | 10s |
Max-Cycle | 1 |
