Compliant with OSFP MSA Standard
Compliant with NGSFP/DSFP MSA Standard
Compliant with IEEE 802.3cd (400GBASE-CR8) Standard
Compliant with IEEE 802.3bj (100GBASE-CR4) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 28G NRZ & 56G PAM-4 Per Channel Total Bandwidth 400 Gbps (8 Lane 56G PAM-4)
Low Power Consumption
Management Interface follows CMIS Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab
Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment

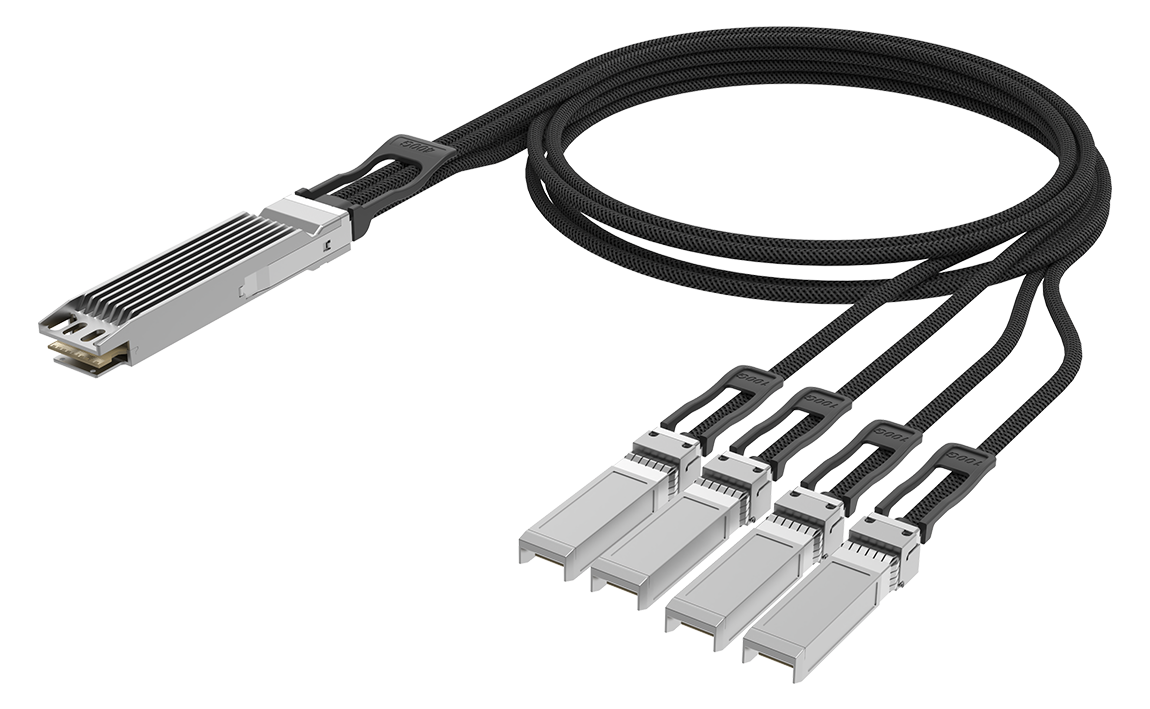

400Gbps Ethernet Fan out
InfiniBand? 8X EDR & HDR
Fibre Channel
Mechanical Performance
OSFP Module
Module Insertion: 40N Maximum
Module Extraction: 30N Maximum
Latch Retention: 125N Minimum
Rated Durability Cycles: 50 Cycles
NGSFP56(DSFP56) Module
Module Insertion: 18N Maximum
Module Extraction: 12.5N Maximum
Latch Retention: 90N Minimum-170N Maximum
Rated Durability Cycles: 50 Cycles Minimum
Electrical Performance
OSFP Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current :0.03A Max at 3.135V
Power Consumption (Redriver ACC) : 1.5 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
NGSFP56(DSFP56) Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current :0.03A Max at 3.135V
Power Consumption (Redriver ACC) : 1.0 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
IEEE 802.3cd (400GBASE-CR8)
IEEE 802.3bj (200GBASE-CR8)
IEEE 802.3by (25 Ethernet)
InfiniBand? 8X EDR(200G) / HDR(400G)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
