Part Details
Product Specification
ITEM | Description |

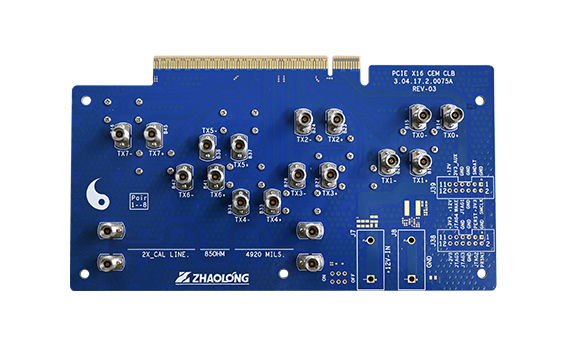

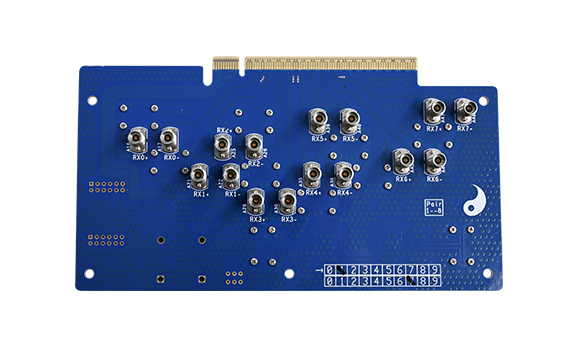

Connector | PCIe x16 edge card as defined in CEM Specification |
Connector Contact | 164-Pin Connector |
Connector Configuration | Hard Gold Finger |
Connector Termination Style | N/A |
No. of HSIO Routed | 16 TX and 16 RX |
RF Co-axial Launch Connector | 2.40mm Connector -50 Ohm |
HSIO Routing | 85 Ohm ±5% Differential Stripline |
Board Stack-Up | 6 Layers (1.57mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | External 5.0V unregulated power sourcing, built-in +5.5V to +3.3V linear voltage regulator generateing local clean voltage sourcing to DUT |
