Features and Benefits
1. Customer system design more flexible
2. Support PCIe 4.0 in long distance
3. Supports 85 ohm impedance applications
4. Supports 34-30AWG .
5. Provide Laminate and FFC type .
Mechanical Performance
1. Mating force: 95N(16x) / 57N (8x) maximum
2. Unmating force: 15N(16x) / 9N (8x) minimum
3. Rated durability cycles: 50 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe 4.0 16.0 GT/S
2. PCIe 3.0 8.0 GT/S
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
PCIe 4.0 16x Extend Cable(Laminate Type)
Product Description: PCIe 4.0 16x Extend Cable Assembly (Straddle Mount PCIe Slot with Twin-AX Laminate Cable)

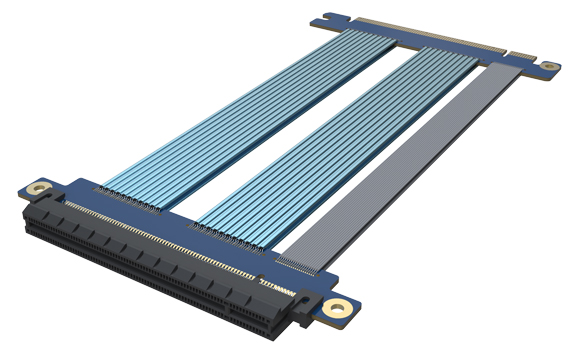

(The photo is only for reference. Please contact Zaolong sales for any inquiries.)
Series: Extend PCIe Cable
Connector:Straddle Mount PCIe Slot
Cable Type:Twin-AX Laminate
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Power Wire : 18~20AWG hook wire or 30AWG Flat Cable
Lock to mating part: optional lock tab
Plating: Au 30u" min on contact area or other optional
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
產(chǎn)品描述：PCIe 4.0 16x Extend Cable Assembly (Straddle Mount PCIe Slot with Twin-AX Laminate Cable)
（圖面供參考，任何疑問請聯(lián)系兆龍銷售）
系列：PCIe延長線系列
線材長度：1m
信號線線徑：30AWG
電源線線徑：16AWG和30AWG扁平線
解鎖裝置;卡扣方案可選
鍍層：接觸區(qū)域鍍金層大于30u"或參照客戶要求
連接器顏色：黑色
環(huán)保要求：RoHS
阻燃等級：UL94V-0
