Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3. PCIe signal extend or jump
4. Gaming PC
5. Industry PC (IPC)
6. GPU Card
Features and Benefits
1. Customer system design more flexible
2. Support PCIe 4.0 in long distance
3. Supports 85 ohm impedance applications
4. Supports 34-30AWG .
5. Provide Laminate and FFC type .
Mechanical Performance
1. Mating force: 21N(4X) / 31N (8X)maximum
2. Unmating force: 18N(4X) / 24N (8X)maximum
3. Rated durability cycles: 250 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe 4.0 16.0 GT/S
2. PCIe 3.0 8.0 GT/S
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

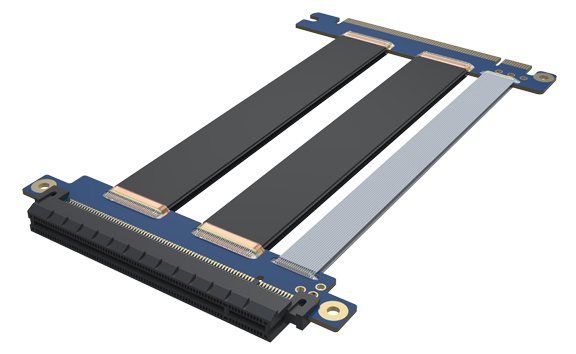

PCIe 4.0 16x Extend Cable(FFC Type)
Product Description: PCIe 4.0 16x Extend Cable Assembly (Straddle Mount PCIe Slot with FFC Cable)
(The photo is only for reference. Please contact Zaolong sales for any inquiries.)
Series: Extender PCIe Cable
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Power Wire : 18~20AWG hook wire or 30AWG Flat Cable
Lock to mating part: optional lock tab
Plating: Au 30u" min on contact area or other optional
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
產品描述：PCIe 4.0 16x Extend Cable Assembly (Straddle Mount PCIe Slot with FFC Cable)
（圖面供參考，任何疑問請聯系兆龍銷售）
系列：PCIe延長線系列
線材長度：1m
信號線線徑：30AWG
電源線線徑：16AWG和30AWG扁平線解鎖裝置：拉帶
解鎖裝置;卡扣方案可選
鍍層：接觸區域鍍金層大于30u"或參照客戶要求
連接器顏色：黑色
環保要求：RoHS
阻燃等級：UL94V-0
