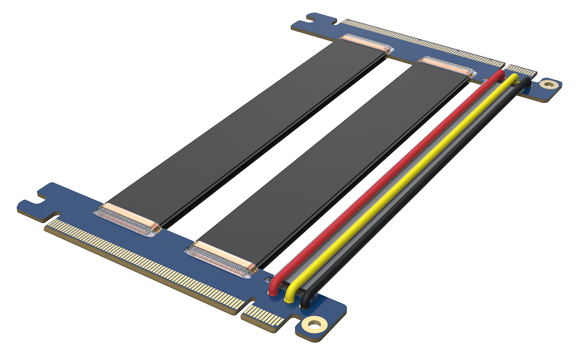

PCIe 4.0 16x Jump Cable (FFC Type)
Product Description: PCIe 4.0 16x Jump Cable Assembly (Twin-AX Laminate Type)
(The photo is only for reference. Please contact Zaolong sales for any inquiries.)
Series: Extend PCIe Cable
Connector: PCIe Edge Card
Cbale Type:FFC Cable
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Power Wire : 16AWG and 30AWG Flat Cable
Lock to mating part: optional lock tab
Plating: Au 30u" min on contact area or other optional
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
