Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3. PCIe signal extend or jump
4. Gaming PC
5. Industry PC (IPC)
6. GPU Card
Features and Benefits
1. Customer system design more flexible
2. Support PCIe 4.0 in long distance
3. Supports 85 ohm impedance applications
4. Supports 34-30AWG .
5. Provide Laminate and FFC type .
Mechanical Performance
1. Mating force: 95N(16x) / 57N (8x) maximum
2. Unmating force: 15N(16x) / 9N (8x) minimum
3. Rated durability cycles: 50 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe 4.0 16.0 GT/S
2. PCIe 3.0 8.0 GT/S
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

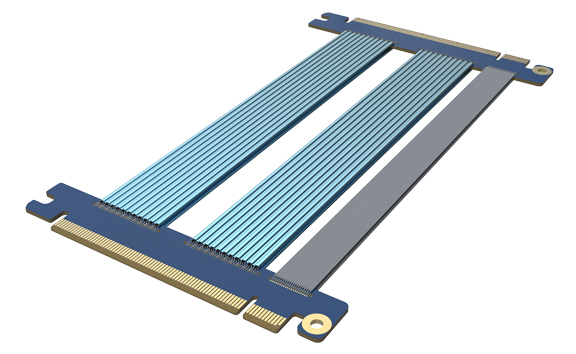

PCIe 4.0 16x Jump Cable (Twin-AX Laminate Type)
Product Description: PCIe 4.0 16x Jump Cable Assembly (Twin-AX Laminate Type)
(The photo is only for reference. Please contact Zaolong sales for any inquiries.)
Series: Extend PCIe Cable
Connector: PCIe Edge Card
Cbale Type:Twin-AX Laminate
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Power Wire : 16AWG and 30AWG Flat Cable
Lock to mating part: optional lock tab
Plating: Au 30u" min on contact area or other optional
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
