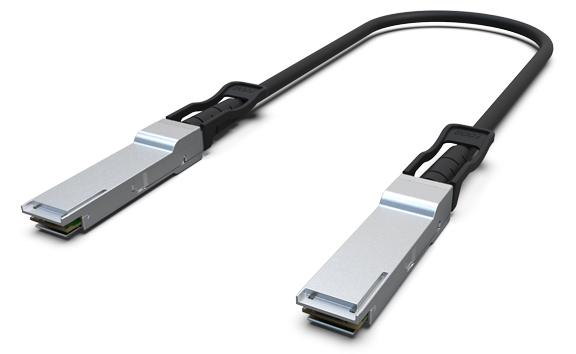

Compliant with QSFP-DD MSA Standard
Compliant with IEEE 802.3bj (200GBASE-CR8) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 28G NRZ Channel Total Bandwidth 200 Gbps (8 Lane 28G NRZ)
Low Power Consumption
Management Interface follows CMIS Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab
Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
200Gbps Ethernet
InfiniBand? 8X EDR
Fibre Channel
Mechanical Performance
OSFP-DD Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current :0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Electrical Performance
OSFP-DD Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current :0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
IEEE 802.3bj (200GBASE-CR8)
IEEE 802.3by (25 Ethernet)
InfiniBand? 8X EDR(200G)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
