Compliant with QSFP28/56 MSA Standard
Compliant with IEEE 802.3cd (200GBASE-CR4) Standard
Compliant with IEEE 802.3bj (100GBASE-CR4) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 28G NRZ & 56G PAM-4 Per Channel Total Bandwidth 200 Gbps (4 Lane 56G PAM-4)
Low Power Consumption
Management Interface follows SFF-8636 Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab
Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
200Gbps Ethernet
InfiniBand? 4X EDR & HDR
Fibre Channel
Mechanical Performance

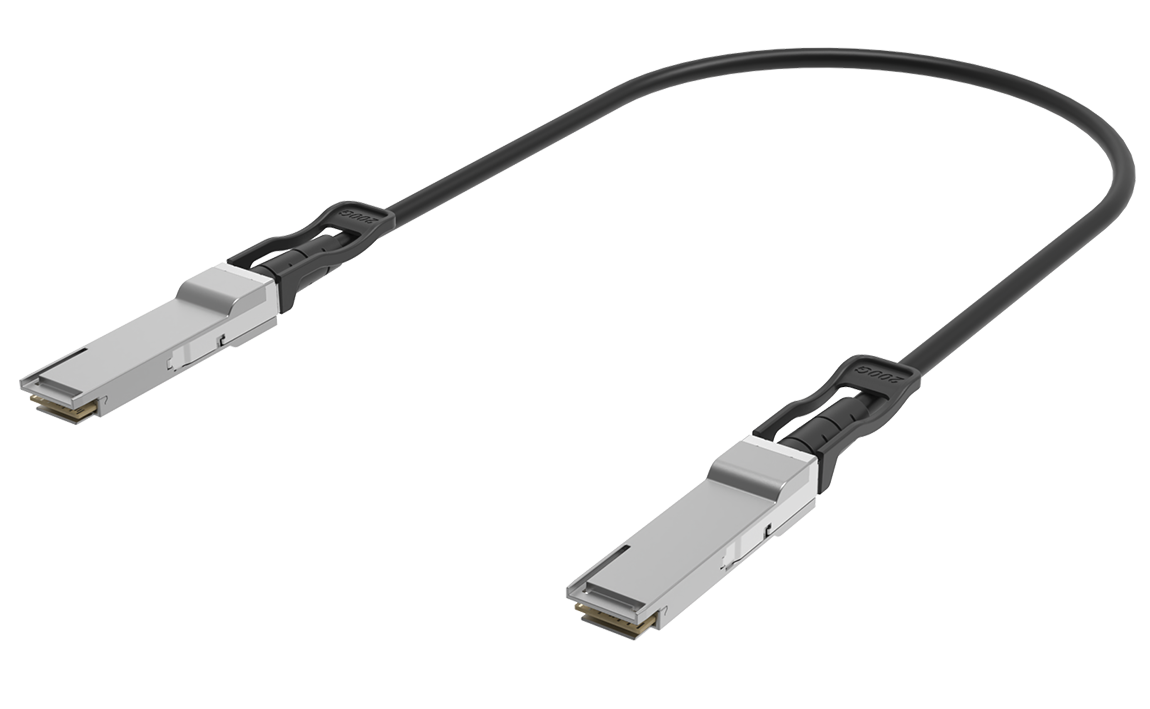

QSFP56 Module
Module Insertion: 60N Maximum
Module Extraction: 30N Maximum
Latch Retention: 90N Minimum
Rated Durability Cycles: 50 Cycles Minimum
Electrical Performance
QSFP56 Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current:0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
IEEE 802.3cd (200GBASE-CR4)
IEEE 802.3bj (100GBASE-CR4)
IEEE 802.3by (25 Ethernet)
InfiniBand? 4X EDR(100G) / HDR(200G)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
