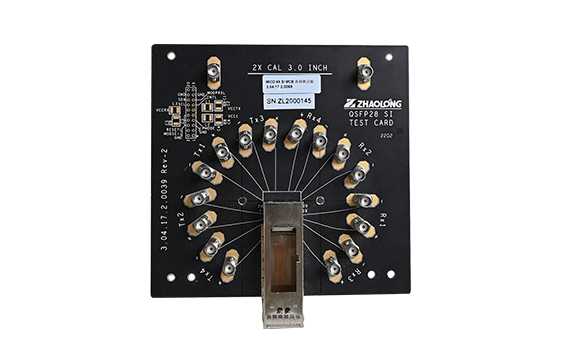

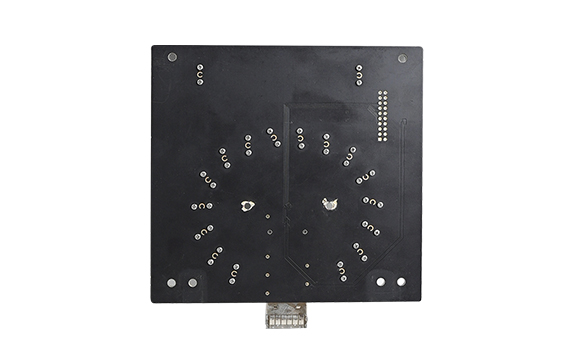

Part Details
Product Specification
ITEM | Description |
Connector | QSFP56(28) as defined in SFF-8436 Specification |
Connector Contact | 38-Pin Connector |
Connector Configuration | Right Angel |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 4 TX and 4 RX |
RF Co-axial Launch Connector | 2.40mm Connector -50 Ohm |
HSIO Routing | 50 Ohm ±5% Single-Ended Stripline |
Board Stack-Up | 6 Layers (1.52mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | External 3.3V unregulated power sourcing for both VccTx, VccRx and Vcc1 |
