Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
Features and Benefits
1. Complince with SFF-8654 standard
2. Small size design: pitch 0.6mm
3. 4x(38pos)and 8x(74pos) connector type, and support straight, right angle and side exit
4. Supports 100 & 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable
6. Pull tab is optional
7. Optional ASM ( Anti Skew Mated) funtion
Mechanical Performance
1. Mating force: 21N(4X) / 31N (8X)maximum
2. Unmating force: 18N(4X) / 24N (8X)maximum
3. Rated durability cycles: 250 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe 4.0 16GT/S
2. SAS 4.0 24Gbps
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

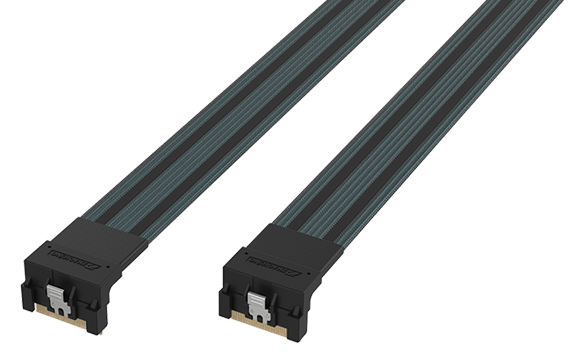

SlimSAS ASM 8x R/A
Product Description: SlimSAS ASM 8x/74pos Right Angel Plug
Series: SFF-8654 SlimSAS ASM Series
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Pull Tab : No
Connector Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
