Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
Features and Benefits
1. Pitch 0.6mm connector design, plug with pull tab
2. 1.57mm PCB card thickness compatible with PCIe riser card
4. Supports 85 ohm impedance applications
5. 34-30AWG cables are optional
6. Straight, right angle, side exit and customization cable plug are optional
7. Supports signaling rates up to PCIe Gen5 and PCIe Gen6
8. Compliance to SFF(SFF-TA-1016)
Mechanical Performance
1. Latched Mating Force: 4X-31N, 8X-51N,16X-79N,24X-92N Maximum
2. Latched Retention: 4X-4N, 8X-6N,16X-8N,24X-10N Minimum
3. Durability : 200 Cycles
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe Gen4 and PCIe Gen5
2. OCP Standard
2. Performance Support to Next Generation PCIe 6.0 Requirement
3. Support 56G PAM4
4. Performance Support to Next Generation 112G-PAM4 Requirement
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

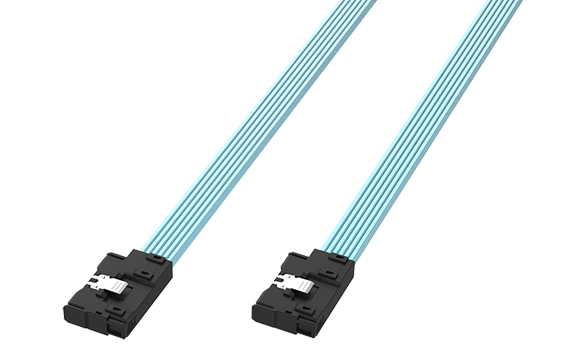

MCIO 8X/74pos 85 Ohm LSE
Product Description: MCIO 8X/74pos 85 Ohm Left Side Exit Plug
Series: SFF-TA-1016 MCIO
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
產品描述：MCIO 8X/74pos 85 Ohm Right Side Exit Plug
系列：SFF-TA-1006 MCIO
線材長度：1m
線徑：30AWG
解鎖裝置：彈片
鍍層：接觸區域鍍金層大于30u"
連接器顏色：黑色
環保要求：RoHS
阻燃等級：UL94V-0
