Features and Benefits
Compliant with SFP-DD MSA Standard
Compliant with IEEE 802.3ck (100GBASE-CR) Standard
Compliant with IEEE 802.3cd (50GBASE-CR) Standard
Compliant with IEEE 802.3bj (25GBASE-CR) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 112G PAM-4 Per Channel
Low Power Consumption
Management Interface follows CMIS Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab
Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
100Gbps Ethernet
InfiniBand? 1X NDR ,HDR & EDR
Mechanical Performance

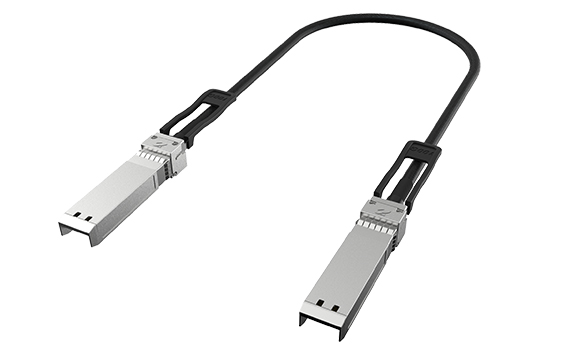

SFP112 Module
Module Insertion: 18N Maximum
Module Extraction: 12.5N Maximum
Latch Retention: 90N Minimum-170N Maximum
Rated Durability Cycles: 50 Cycles Minimum
Electrical Performance
SFP112 Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current:0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
IEEE 802.3ck (100GBASE-CR)
IEEE 802.3cd (50GBASE-CR)
IEEE 802.3bj (25GBASE-CR)
IEEE 802.3by (25 Ethernet)
InfiniBand? 1X NDR(100G) /HDR(50G) / EDR(25G)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
