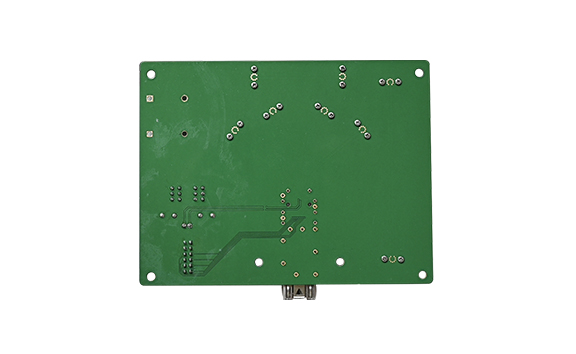

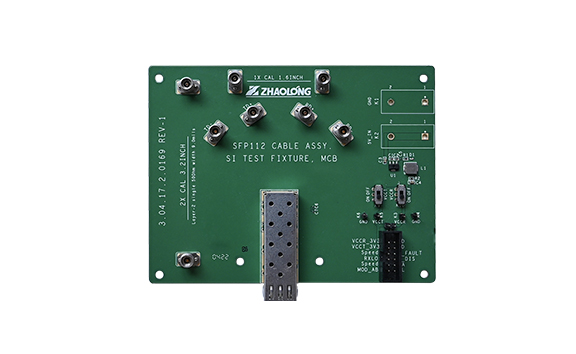

Part Details
Product Specification
ITEM | Description |
Connector | SFP112 as defined in SFP12 MSA |
Connector Contact | 20-Pin Connector |
Connector Configuration | Right Angel |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 1 TX and 1 RX |
RF Co-axial Launch Connector | 1.85mm Connector -50 Ohm |
HSIO Routing | 50 Ohm ±5% Single-Ended Stripline |
Board Stack-Up | 6 Layers (1.36mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 50mils from void |
Power source to DUT | External 5.0V unregulated power sourcing, built-in +5.5V to +3.3V linear voltage regulator generateing local clean voltage sourcing to DUT |
