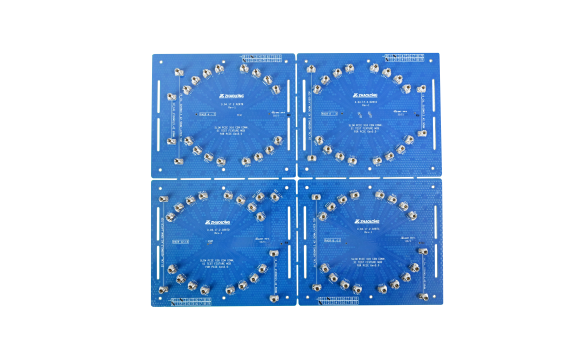

Part Details
Product Specification
ITEM | Description |

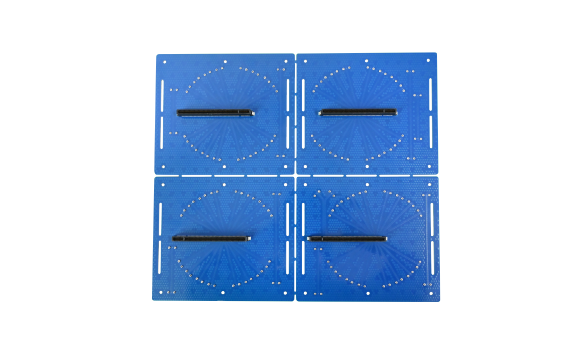

Connector | PCIe Receptacle as defined in CEM Specification |
Connector Contact | 164-pin connector |
Connector Configuration | Vertical |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 16 TX and 16 RX |
RF Co-axial Launch Connector | 2.40mm connector(50 Ohm) |
HSIO Routing | 42.5 Ohm ±5% Single-Ended stripline |
Board Stack-Up | 6 layers (1.57mm thickness) |
De-embedding structure | 2X THRU line |
Reference plane for 2X THRU De-embedding structure | 40mils from voiding |
Power source to DUT | N/A |
