Features and Benefits
1. Compliance with SFF-8086/ 8087 standard
2. Small size design: pitch 0.8mm
3. 36pos and 68 pos connector type, and support straight, right angle and side exit
4. Design for SATA & SAS Applcation
Mechanical Performance
1. Mating force: 55.5N maximum
2. Unmating force: 49N maximum
3. Rated durability cycles: 250 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5 A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. SAS 3.0 12Gbps
2. SATA 3.1 6Gbps
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

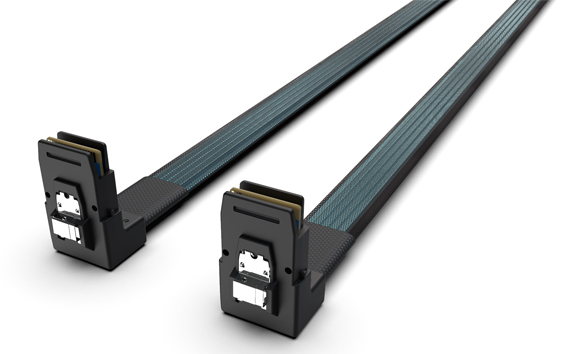

Mini SAS 36pos-R/A
Product Description: Mini SAS 36pos Right Angel Plug
Series: Internal Mini SAS
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
產品描述：Mini SAS 36pos Straight Plug
系列：內部MiniSAS
線材長度：1m
線徑：30AWG
解鎖裝置：彈片
鍍層：接觸區域鍍金層大于30u"
連接器顏色：黑色
環保要求：RoHS
阻燃等級：UL94V-0
