Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
Features and Benefits
1. Compliance with SFF-8613/ 8643/8673 standard
2. Small size design: pitch 0.8mm
3. 4i(36pos)and 8i(72pos) connector type, and support straight, right angle and side exit
4. Supports 100 & 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable
Mechanical Performance
1. Mating force: 150N maximum
2. Unmating force: 50N maximum
3. Rated durability cycles: 250 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 1.0A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe 4.0 16.0 GT/S
2. SAS 4.0 24 Gbps
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

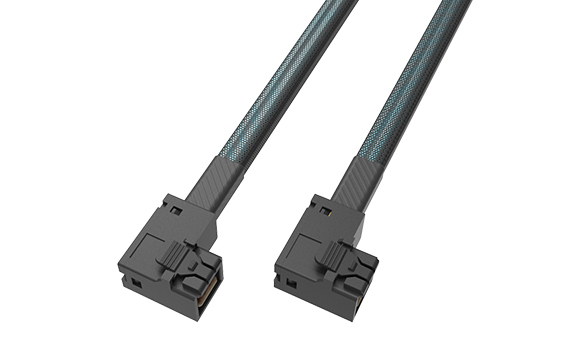

Int.Mini SAS HD 4i RSE
Product Description: Mini SAS HD 4i/36pos Right Side Exit Plug
Series: Internal Mini SAS HD
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
產品描述：Mini SAS HD 4i/36pos Right Side Exit Plug
系列：內部MiniSAS HD
線材長度：1m
線徑：30AWG
解鎖裝置：彈片
鍍層：接觸區域鍍金層大于30u"
拉帶：包含
連接器顏色：黑色
環保要求：RoHS
阻燃等級：UL94V-0
