Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
Features and Benefits
1. Support cable to board and board to board application
2. Small size design: pitch 0.6mm
3. Multiple channels are optional: 1C(56pos.), 2C(84pos.), 4C (140pos.) and 4C+(168pos)
4. Supports 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable
6. Combined Power solution, high speed and sideband
7. Compliance SFF-TA-1002 and SFF-TA-1020
Mechanical Performance
1. Mating force : 1C-41 , 2C-57N ,4C-87N , 4C+ -103 N (Max)
2. Unmating force: 1C-5N , 2C-6N ,4C-9N , 4C+ -11 N (Mini)
2. Rated durability cycles: 25 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe Gen4 and PCIe Gen5
2. OCP Standard
3. Performance Support to Next Generation PCIe 6.0 Requirement
4. Support 56G PAM4
5. Performance Support to Next Generation 112G-PAM4 Requirement
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed

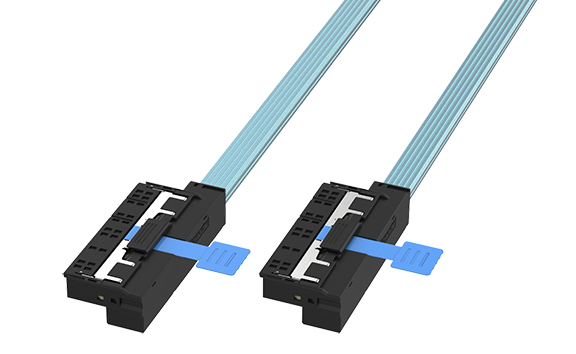

Gen-Z 4C LSE
Product Description: Gen-Z 4C/140pos Left Side Exit Plug
Series: SFF-TA-1020 Gen-Z
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Pull tab : Yes
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
產品描述：Gen-Z 4C/140pos Left Side Exit Plug
系列：SFF-TA-1020 Gen-Z
線材長度：1m
線徑：30AWG
解鎖裝置：彈片
鍍層：接觸區域鍍金層大于30u"
連接器顏色：黑色
環保要求：RoHS
阻燃等級：UL94V-0
