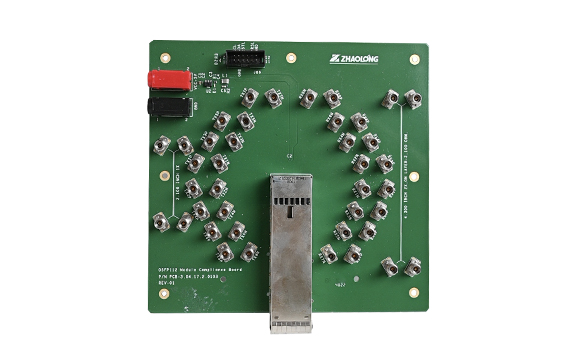

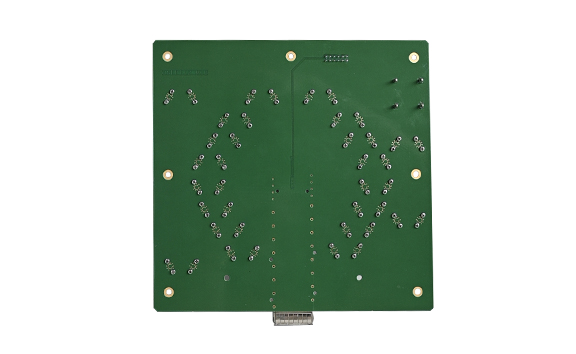

Part Details
Product Specification
ITEM | Description |
Connector | OSFP as defined in OSFP MSA |
Connector Contact | 60-Pin Connector |
Connector Configuration | Right Angel |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 8 TX and 8 RX |
RF Co-axial Launch Connector | 2.40mm Connector -50 Ohm |
HSIO Routing | 100 Ohm ±5% Differential Stripline |
Board Stack-Up | 6 Layers (1.50mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | External 5.0V unregulated power sourcing, built-in +5.5V to +3.3V linear voltage regulator generateing local clean voltage sourcing to DUT |
