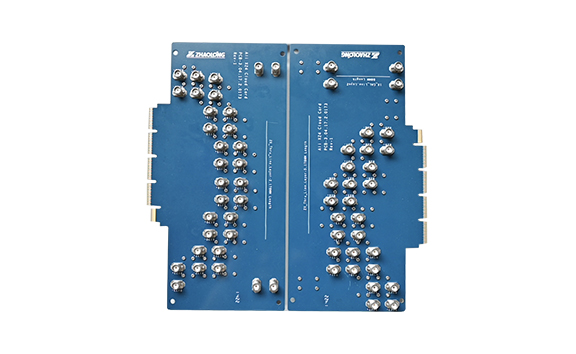

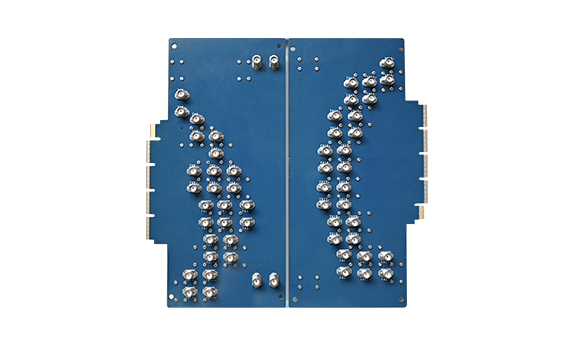

Part Details
Product Specification
ITEM | Description |
Connector | Gen-Z 4C gold finger as defined in SFF-TA-1002 |
Connector Contact | 224-Pin finger plug |
Connector Configuration | Hard Gold Plating |
Connector Termination Style | N/A |
No. of HSIO Routed | 16 TX and 16 RX |
RF Co-axial Launch Connector | 2.40mm Connector -50 Ohm |
HSIO Routing | 85 Ohm ±5% Differential Stripline |
Board Stack-Up | 6 Layers (1.93mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | N/A |
