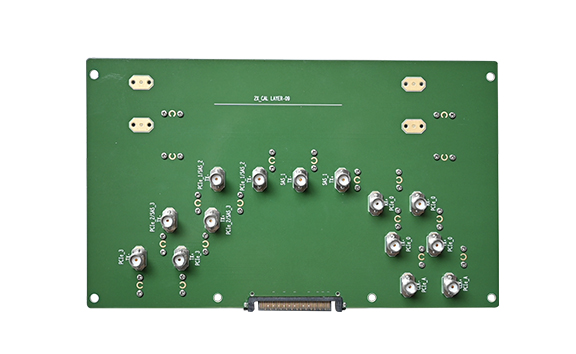

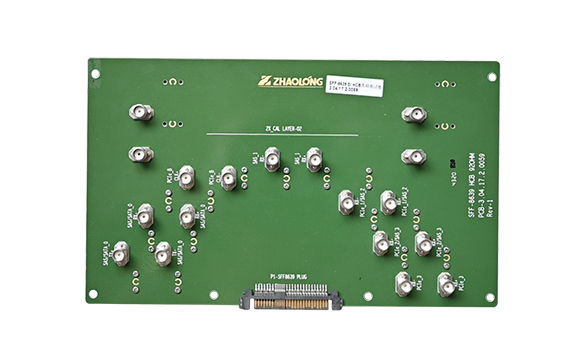

Part Details
Product Specification
ITEM | Description |
Connector | U.2 header as defined in SFF-8639 |
Connector Contact | 68-Pin Connector |
Connector Configuration | Right Angel |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 4 TX and 4 RX for PCIe, 4 TX and 4 RX for SAS |
RF Co-axial Launch Connector | 2.92mm Connector -50 Ohm |
HSIO Routing | 92.5 Ohm ±5% Differential Stripline |
Board Stack-Up | 10 Layers (1.62mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | N/A |
