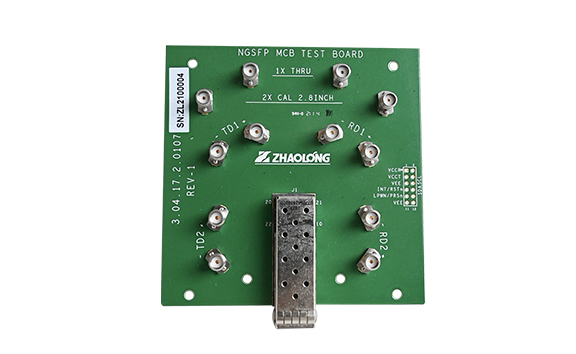

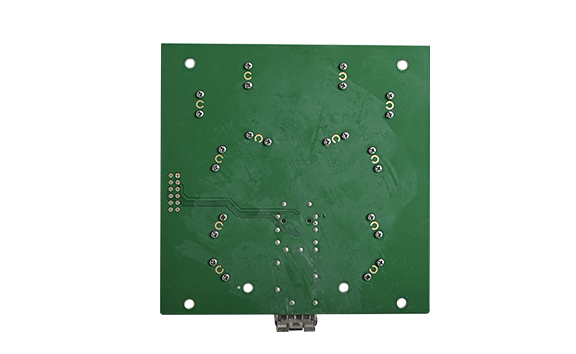

Part Details
Product Specification
ITEM | Description |
Connector | NGSFP as defined in DSFP module specification |
Connector Contact | 22-Pin Connector |
Connector Configuration | Right Angel |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 2 TX and 2 RX |
RF Co-axial Launch Connector | 2.40mm Connector -50 Ohm |
HSIO Routing | 50 Ohm ±5% Single-Ended Stripline |
Board Stack-Up | 6 Layers (1.55mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | External 3.3V regulated power sourcing to DUT |
