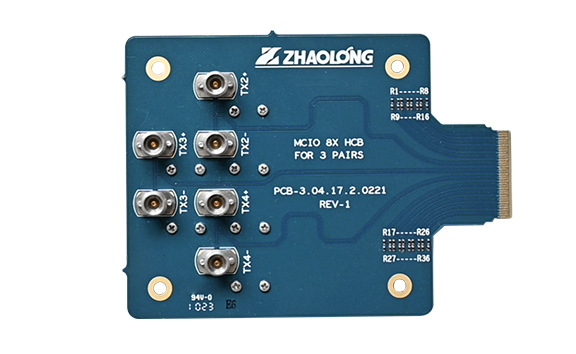

Part Details
Product Specification
ITEM | Description |
Connector | MCIO 8x plug as defined in SFF-TA-1016 |
Connector Contact | 74-Pin Connector |
Connector Configuration | Hard Gold Finger |
Connector Termination Style | N/A |
No. of HSIO Routed | 3 TX and 3 RX |
RF Co-axial Launch Connector | 1.85mm Connector -50 Ohm |
HSIO Routing | 85 Ohm ±5% Differential Microstrip |
Board Stack-Up | 6 Layers (1.57mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | N/A |
