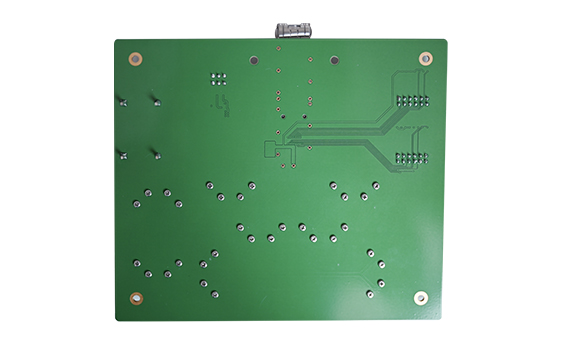

Part Details
Product Specification
ITEM | Description |

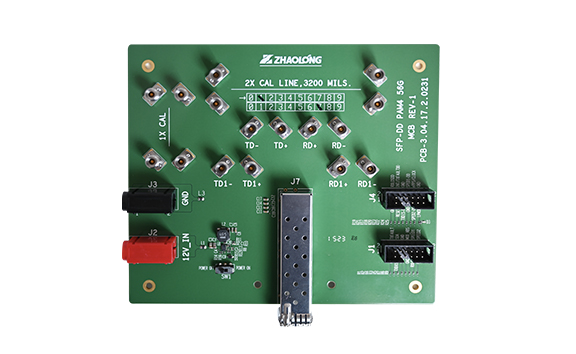

Connector | SFP-DD as defined in SFP-DD latested MSA |
Connector Contact | 40-pin connector |
Connector Configuration | right angle |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 2 TX and 2 RX |
RF Co-axial Launch Connector | 1.85mm connector(50 Ohm) |
HSIO Routing | 100 Ohm ±5% differential-ended stripline |
Board Stack-Up | 6 layers (1.60mm thickness) |
De-embedding structure | 2X THRU line |
Reference plane for 2X THRU De-embedding structure | 25mils from void |
Power source to DUT | external 12.0V unregulated power sourcing, built-in +12.0V to +3.3V linear voltage regulator generateing local clean voltage sourcing to DUT |
