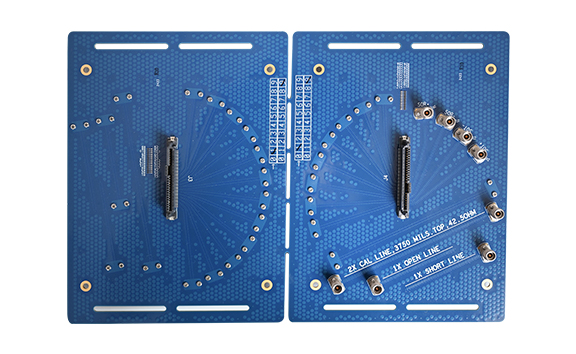

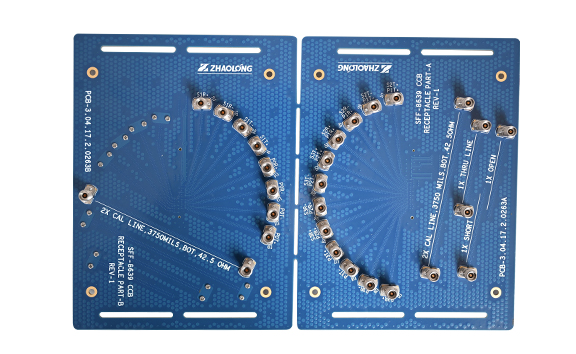

Part Details
Product Specification
ITEM | Description |
Connector | U.2 receptacle as defined in SFF-8639 |
Connector Contact | 68-pin connector |
Connector Configuration | Vertical |
Connector Termination Style | Surface Mount |
No. of HSIO Routed | 4 TX and 4 RX for PCIe, 4 TX and 4 RX for SAS |
RF Co-axial Launch Connector | 2.40mm connector(50 Ohm) |
HSIO Routing | 42.5 Ohm ±5% Single-Ended microstrip |
Board Stack-Up | 6 layers (1.30mm thickness) |
De-embedding structure | 2X THRU line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | N/A |
