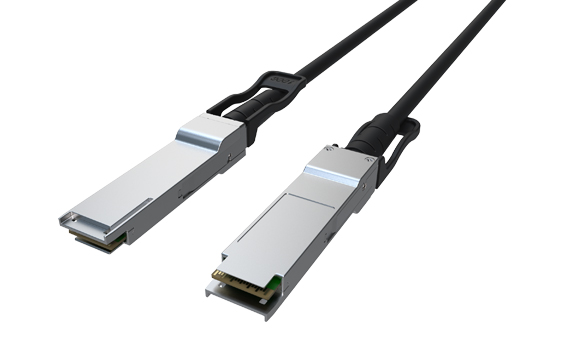

QSFP28 to QSFP28 100G DAC | QSFP28 to QSFP28 100G ACC Redriver Cable | QSFP28 100G to 2*QSFP 50G DAC | QSFP28 100G to 4*SFP28 25G DAC |
Compliant with IEEE 802.3bj (100GBASE-CR4) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate : 25 Gbps/Channel Total Bandwidth 100 Gbps( 4X 25G)
Connector Compliant with SFF 8665 QSFP 28 Gb/s 4X Pluggable Transceiver Solution
Low Power Consumption < 0.5W (Passive)
Support Wire AWG : 32/ 30 / 28 / 26
Support Length (Passive DAC) : 0.5- 5.0 Meter
Support Length (Redriver ACC): 1.0-9.0 Meter
EEPROM signature can be customized
Target Market
100G Ethernet
4x InfiniBand? QDR,FDR, EDR
Fibre Channel
Storage, Switch, & RAID Systems
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Telecommunication Equipment
Data Center and Enterprise Storage Systems
